LPJK0071AWNL | JK0654219NL Pulse RJ45 Modular Jack,10/100/1000Base-T

LPJK0071AWNL | JK0654219NL Pulse RJ45 Modular Jack,10/100/1000Base-T

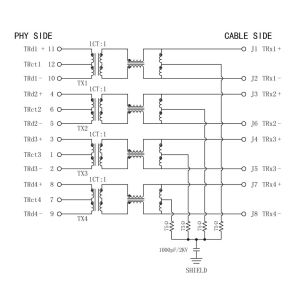

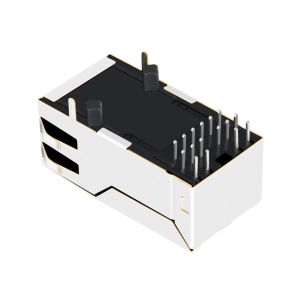

10/100/1000 Base-T RJ45 single port (1x1) Tab-UP with or without LEDs integrated magnetics connector
(ICM), designed to support applications, such as Network Interface Cards (NIC), LAN-on-Motherboard (LOM),
and PC applications.

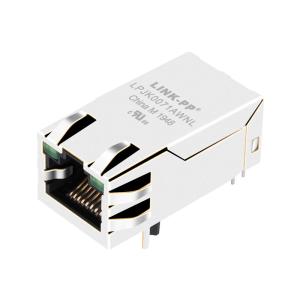

LINK-PP LPJK0071AWNL Compatible to JK0654219NL

Features and Benefits

Single port Tab-UP with internal magnetics for 10/100/1000 Base-TX Available with or without LEDs
Suitable for CAT 5 and 6 Fast Ethernet cable or better UTP Internal magnetics are 100% electrically tested for HI-POTand functionality

Electrical Performance Summary

Internal magnetics options available
Meets or exceeds IEEE 802.3ab standard for 1000Base-T
350 µH minimum OCL with 8 mA bias current
High performance for maximum EMI suppression
Minimum 1500 Vrms isolation per IEEE 802.3 requirement
