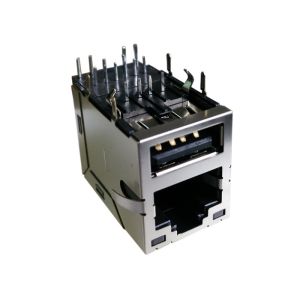

RJ45 USB Connector LPJE305AGNL

Ask Lasest Price
Brand Name :	LINK-PP
Certification :	UL,RoHS,Reach,ISO
Model Number :	LPJE305AGNL
Price :	Negotiable
Delivery Time :	Stock
Payment Terms :	TT,NET30/60/90 Days
Supply Ability :	1800K/Month

Add to Cart

Product Details
Company Profile

RJ45 USB Connector LPJE305AGNL

LPJE305AGNL USB RJ45 Combo Connector stacked Female Jack With LED Indicators

Description	RJ45/Single USB Jack
TYPE	Parameters
Electrical	1. Voltage: 125VAC RMS. 2. Current Rating: 1.5A. 3. Contact Resistance: 30 Millohms max. 4. Insulation Resistance: 500 Megohms Min @500VDC. 5. Dielectric Strength: 1000VAC RMS 50Hz 1Min. 6. RJ-45 Contact plating: Gold 6 micro-inches min. In contact area USB Contact plating: Gold flash 7. Gold Plating: (Gold Flash;1.5;3;6;15;30;50)U" Inch 8. Wave solder temperature: 230°C to 250°C, 5~10 Sec.
Size	1. Length: 27.5mm 2. Width: 18.7mm 3. Height: 22.5mm
Mechanical	1. Housing Material: Glass Filled Polyester UL94V-0. 2. Contact Material: Phosphor Bronze. 3. Plating: Gold Plating Over Nickel. 4.Operating:750 Cycles Min. 5. Shield 0.23mm Thickness Copper Alloy With Nickel Plated. 6. PCB Retention Pre-Solder: 1 LB Min.
Environmental	1. Temperature Range: -45°C~+85°C. 2. Relative Humidity: 90~95%(40±2°C)

Features of RJ45 USB Combo Connector:

LPJE305AGNL features a single-port Ethernet connection over stacked USB ports. Our RJ45 connector without magnetics complies with IEEE802.3 standards. While the USB modules comply with USB 2.0 standards. Equipped with left yellow and
right green LED. These through-hole connectors are RoHS-compliant. LINK-PP RJ45 Connectors are suitable for desktop PCs, embedded systems, and LOM applications.

RJ45 Female Jack stacked over USB port
Rj45+1USB Jack With LED Indicators
RJ45 Connector without Magnetics
Plug Interface Type: RJ45 over Single USB
Modular Jack: Combo Jacks
Port Matrix Configuration: 2 x 1
Port Configuration: Single Port
RJ45 connection meets Cat3/5/5e standards
USB module complies with USB 2.0 standards
High performance for maximum EMI suppression

LPJE305AGNL Rj45 Without Magnetics Drawing:

LPJE305AGNL.pdf
