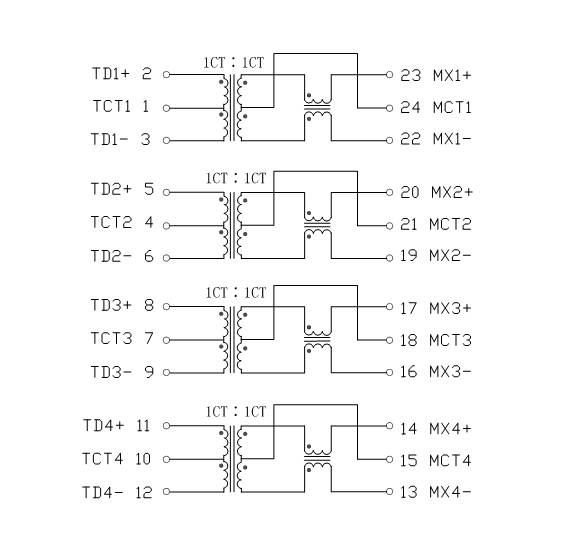

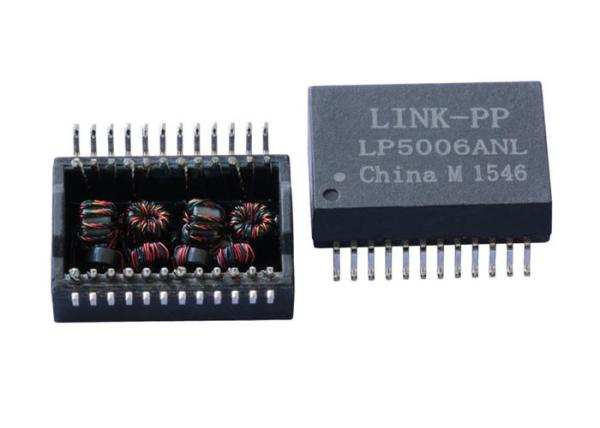

1.Single Port Gigabit Ethernet Transformer LP5006ANL

2.Cross rf L22T001-3 Pin to Pin Compatible

3.1000 Base-T Magnetics Modules Ethernet application

Application:

1.Rugged computers

2.Cable Assemblies

3.Data Output Modules

4.PCI Products

NOTES:
1.Designed to support application
2.With various Turns Ratios.
3.350uH min OCL with 8mA bias .
4.Maximum Reflow Temperature is 250℃,5 Sec.

5.Meets IEEE 802.3 specification
6.UL Certification: File Number E484635

7.Compliance with ROHS requirements

8.100% Tested (Not Just Batch Tested)

LINK-PP is a professional designer and Manufacturer of magnetic telecom and networking components. Founded in Shenzhen in 1997 and began to develop Discrete Transformer. With over 26 years of experience in innovation and technology leadership. Our main products include RJ45 Connectors, LAN Transformers, and SFP Modules. We focus on improving product reliability and durability.

Main Production Lines

◆ 10/100/1000/10GBase-T LAN Isolation Transformer and Filter

◆ Rj45 Modular Jack With Integrated 10/100/1000/10G Magnetics
◆ Magnetic Rj45 Jack with POE/ POE+; IEEE823.3af/ IEEE802.3at
◆ LAN Transformer With POE/ POE+; IEEE823.3af/ IEEE802.3at
◆ T1/E1,T3/DS3/E3/STS-1 Interface LAN transformer
◆ ISDN,HDSL,ADSL and VDSL Transformer and splitter

◆ Optical Transceivers
