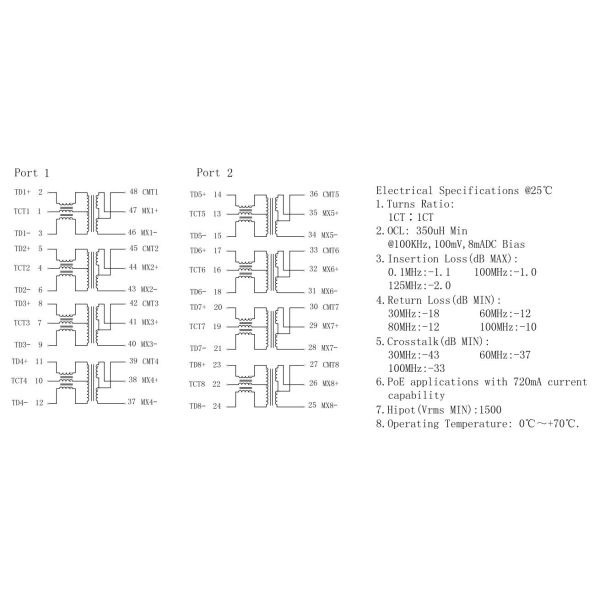

H6101FNL Dual Port Magnetic Features:

• 1000Base-T PoE+ Magnetic Transformer
• IEEE802.3af/at Compliant
• ISO9001, SGS, UL, CE, REACH Approved
• High performance for maximum EMI suppression.
• 100% Electrical Testing
• 1500Vrms Hi-Pot
• Patented Open Frame Construction

H6101FNL Pulse Transformers Applications:

• Embedded Computers
• Rapid Deployment and Portable Applications
• Industrial Ethernet Modules and FMC Boards
• Network Cameras
• Embedded Mini PCI Express Cellular Modem

Pin to Pin LP6080NL
Mounting	Surface Mount
Family	100/1000M POE/POE+ Magnetics
Transformer Type	Isolation Transformer
Minimum Crosstalk	-40@100MHz dB
Lead Style	Gull Wing
Package Type	SMD
Maximum OCL Inductance	0.35 mH
Maximum Isolation Voltage	1500 Vrms
Minimum CMRR	-40@1MHz to 100MHz dB
Minimum Return Loss	-10@100MHz dB
Turns Ratio	1:1
Operating Temperature	-40 to 85 °C
Packaging	Tape and Reel
Maximum Insertion Loss	-1.1@1MHz to 100MHz dB
Product Length	28.00 mm
