Notes for Single-Port 1000 BASE-T Transformer:

1. RoHS Compliant: Ensures environmentally friendly and lead-free manufacturing.
2. Header Material: Constructed from thermoset plastic with a flammability rating of UL 94V0 or better, providing enhanced safety and reliability.
3. Storage Temperature: Can be stored within a temperature range of -20°C to +125°C.
4. Compliance to J-STD Standards:

• J-STD-002: Meets solderability requirements at 245°C reflow profile.
• J-STD-020: Rated as Level 1, indicating no moisture sensitivity.
• J-STD-075: R7 compliant, with a maximum reflow soldering temperature of 245°C.

5. Packaging: Available in Tape & Reel packaging for efficient handling and automated assembly.

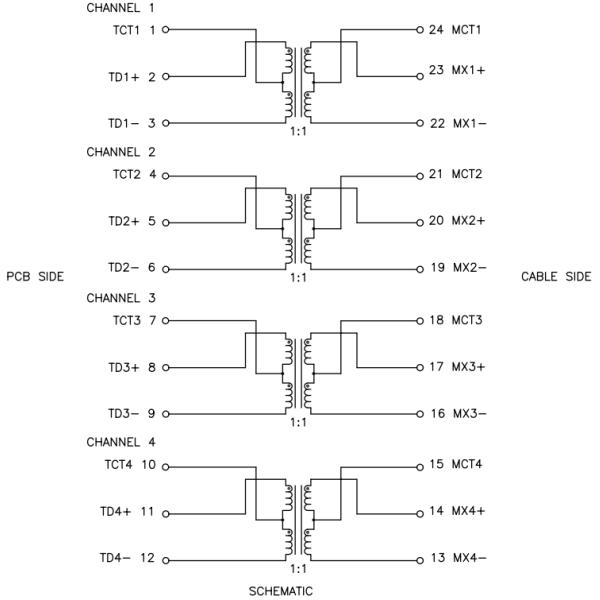

H5084NL Schematics:

H5084NL Dimension:

With a global customer base covering Communications, Consumer, Industrial, and IoT industries. Our products are integral to a wide range of devices, from HUBs and PC cards to Switches, Routers, and more.

LINK-PP is a global supplier for OEMs, contract manufacturers, and CEMs. Standard catalog magnetics and custom solutions are available. With more than two decades of innovation, LINK-PP continues to lead the way in technology, design and manufacturing.
