Overview

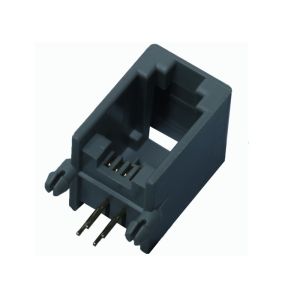

1. Part Number: 615006138421
2. Connector Type: RJ11 Modular Jack (6P6C)
3. Port Configuration: 1x1 (Single Port)
4. Mounting Style: Through-Hole Technology (THT)
5. Orientation: Right Angle (Horizontal) with Tab Up
6. Shielding: Unshielded
7. LED Indicators: None
8. Operating Temperature Range: -40°C to +85°C
9. Compliance: RoHS Compliant
10. Durability: 500 Mating Cycles​

Material Properties

• Insulator Material: Polybutylene Terephthalate (PBT)
• Flammability Rating: UL94 V-0
• Insulator Color: Black
• Contact Material: Copper Alloy
• Contact Plating: Gold
• Contact Type: Stamped​

Electrical Characteristics

• Rated Current: 1.5 A
• Working Voltage: 120 V AC
• Withstanding Voltage: 1000 V AC
• Contact Resistance: ≤ 20 mΩ
• Insulation Resistance: ≥ 500 MΩ

Datasheet

LINK-PP is a professional designer and Manufacturer of magnetic telecom and networking components. Founded in Shenzhen in 1997 and began to develop Discrete Transformer. With over 26 years of experience in innovation and technology leadership. Our main products include RJ45 Connectors, LAN Transformers, and SFP Modules. We focus on improving product reliability and durability.

Main Production Lines

◆ 10/100/1000/10GBase-T LAN Isolation Transformer and Filter

◆ Rj45 Modular Jack With Integrated 10/100/1000/10G Magnetics
◆ Magnetic Rj45 Jack with POE/ POE+; IEEE823.3af/ IEEE802.3at
◆ LAN Transformer With POE/ POE+; IEEE823.3af/ IEEE802.3at
◆ T1/E1,T3/DS3/E3/STS-1 Interface LAN transformer
◆ ISDN,HDSL,ADSL and VDSL Transformer and splitter

◆ Optical Transceivers
