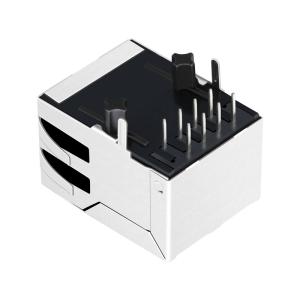

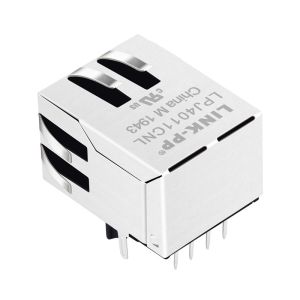

LPJ4011CNL / JX0011D21NL Extended 8P8C RJ45 Modular Jack AutoMDIX 10/100Mbps

1. LINK-PP LPJ4011CNL Single Port Filter Rj-45
2. Cross Equivalent to JX0011D21NL PulseJack
3. Rj45 10/100Base-T Ethernet Filtered Jack Without LED Indicators
4. Rj45 With Integrated Magnetics Industry standard
5. Fully IEEE803.2 Compliant over entire temperature range -40°C to +85°C

ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%):
TX=1CT:1 RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@ 100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1-65MHz
4.Return Loss:
-20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
5.Cross talk:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common Mode Rejection:
-30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
7.Hipot Test: 1500Vrms MIN
8.Operating Temperature Range: -40℃ TO +85℃.
