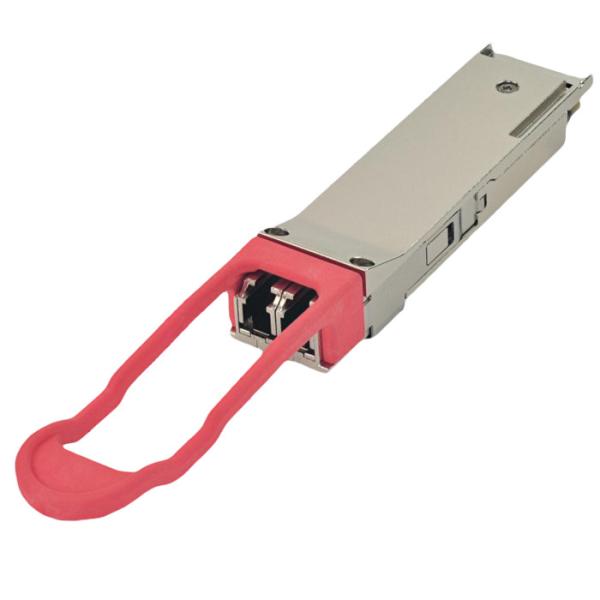

AFBR-79EBPZ 40G Bidirectional MMF QSFP+ Optical Transceiver Module

Ask Lasest Price
Brand Name :	LINK-PP
Model Number :	AFBR-79EBPZ
Certification :	ISO 9001,ISO 14001,UL,SGS,REACH168
Price :	$0.11-$35
Payment Terms :	TT,NET30/60/90 Days
Supply Ability :	350K/Month
Delivery Time :	Stock

Add to Cart

Product Details
Company Profile

AFBR-79EBPZ 40G Bidirectional MMF QSFP+ Optical Transceiver Module

Specifications:	AFBR-79EBPZ
LINK-PP Part Number:	LPXXXXXX
Product Class:	Fiber Optics
Product Family:	Optical Transceivers
Product Series:	QSFP+
Product Name:	QSFP+ Optical Transceivers
Status Available:	Limited Release
RoHS:	RoHS-6 Compliance

Specifications:
Data Rate:	10.3125 GBd
Wavelength:	850nm
Maximun Distance:	150m
Fiber Type:	Multimode Glass
Emitter:	VCSEL
Voltage-Supply:	3.3V
Applications:	Telecom/Datacom Systems
Connector Type:	LC
Mounting Type:	Pluggable,QSFP+
Lead Free Status / RoHS Status:	Lead free / RoHS Compliant
Moisture Sensitivity Level(MSL):	1(Unlimited)

Feature Description:

● Compliant to the 40GbE XLPPI electrical specification per IEEE 802.3ba-2010
● Compliant to QSFP+ SFF-8436 Specification
● Power Level 4: Max Power 3.5W
● Class 1M Eye Safety
● High Port Density: 21mm Horizontal Port Pitch
● Operates at 10.3125 Gbps per Electrical Channel with 64b/66b Encoded Data
● Links up to 100 Meters using OM3 and 150 Meters using OM4 Optical Fiber
● +10 to +70ºC Case Temperature Operating Range
● Proven High Reliability Technology: Avago VCSEL Transmitters & Avago PIN Receiver
● Hot Pluggable Transceiver for Ease of Installation and Servicing
● Two Wire Serial (TWS) Management Interface with Maskable Interrupts for Expanded Functionality
● Utilizes a Standard LC Duplex Fiber Cable Allowing Reuse of Existing 10G MMF Cable Infrastructure
