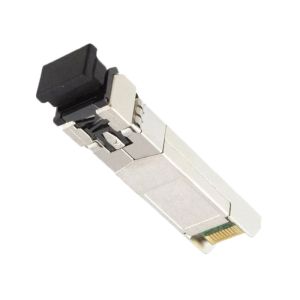

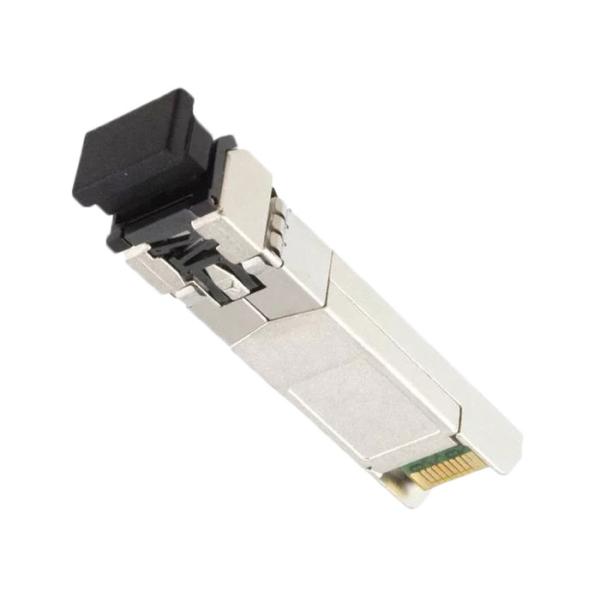

AFBR-57R6AEZ RoHS Compliant SFP Optical Transceiver with Rate
Select
| Specifications: | AFBR-57R6AEZ |
| LINK-PP Part Number: | LPXXXXXX |
| Product Class: | Fiber Optics |
| Product Family: | Optical Transceivers |
| Product Series: | SFP |
| Product Name: | SFP Optical Transceivers |
| Status Available: | Active |
| RoHS: | RoHS-6 Compliance |
Specifications: |
Data Rate: |
4.25 Gbps |
| Wavelength: | 850nm |
| Maximun Distance: | 500m |
| Fiber Type: | Multimode Glass |
| Emitter: | VCSEL |
| Voltage-Supply: | 3.3V |
| Applications: | Ethernet |
| Connector Type: | LC Duplex |
| Mounting Type: | Pluggable,SFP |
| Lead Free Status / RoHS Status: | Lead Free / RoHS Compliant |
| Moisture Sensitivity Level(MSL): | 1(Unlimited) |
● Compliant to Restriction on Hazardous Substances (RoHS) directive
● Diagnostic features per SFF-8472 “Diagnostic Monitoring Interface
for Optical Transceivers”
● Real time monitoring of:
- Received optical power
- Laser bias current
- Temperature
- Supply voltage
● Rate select functionality per SFF 8079 (revision 1.7)
● Wide temperature and supply voltage operation (-10°C to 85°C)
(3.3 V ± 10%)
● Transceiver specifications per SFP (SFF-8074i) Multi-Source
Agreement and SFF-8472 (revision 9.3)
- 4.25 GBd Fibre Channel operation for FC-PI 400-M5-SN-I and
400-M6-SN-I
- 2.125 GBd Fibre Channel operation for FC-PI 200-M5-SN-I and
200-M6-SN-I
-1.0625 GBd Fibre Channel operation for FC-PI 100-M5-SN-I and
100-M6-SN-I
- 1.25 GBd operation for IEEE 802.3 Gigabit Ethernet 1000Base-SX
● Link lengths at 4.25 GBd:
- 150 m with 50 μm MMF, 70 m with 62.5 μm MMF
● Link lengths at 2.125 GBd:
- 300 m with 50 μm MMF, 150 m with 62.5 μm MMF
● Link lengths at 1.0625 GBd:
- 500 m with 50 μm MMF, 300 m with 62.5 μm MMF
● Link lengths at 1.25 GBd:
- 2 to 550 m with 50 μm MMF, 2 to 275 m with 62.5 μm MMF
● LC Duplex optical connector interface conforming to ANSI
TIA/EIA604-10 (FOCIS 10A)
● 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) source
technology
● IEC 60825-1 Class 1/CDRH Class 1 laser eye safe
● Compliant with Gigabit Ethernet
● Enhanced EMI performance for high port density applications
● AFBR-57R6AEZ optical transceiver supports high-speed serial links
over multimode optical fiber at signal-ing rates up to 4.25 Gb/s.
Compliant with Small Form Pluggable (SFP) Multi Source Agreement
(MSA) mechanical and electrical specifications for LC Duplex
transceivers, ANSI Fibre Channel FC-PI, FC-PI-2 and compliant with
IEEE 802.3 for gigabit applications. The part is electrically
interoperable with SFP conformant devices.
● The AFBR-57R6AEZ is a “Quad Rate” 850 nm SFP which ensures
compliance to 4G/2G/1G Fibre Channel and 1G Ethernet
specifications. Using the product’s Rate_Select input, the user
sets the desired SFP compliance point. In high rate position, the
product is equivalent to the 4G/2G/1G Fibre Channel based
AFBR-57R5AEZ. In the low rate position, the product moves to a
2G/1G Fibre Channel 1G Ethernet operating mode.
● As an enhancement to the conventional SFP interface defined in
SFF-8074i, the AFBR-57R6AEZ is compliant to SFF-8472 (digital
diagnostic interface for optical transceivers). Using the 2-wire
serial interface defined in the SFF-8472 MSA, the AFBR-57R6AEZ
provides real time temperature, supply voltage, laser bias current,
laser average output power and received input power. This
information is in addition to conventional SFP base data. The
digital diagnostic interface also adds the ability to disable the
transmitter (TX_DISABLE), monitor for Transmitter Faults
(TX_FAULT), and monitor for Receiver Loss of Signal (RX_LOS).
