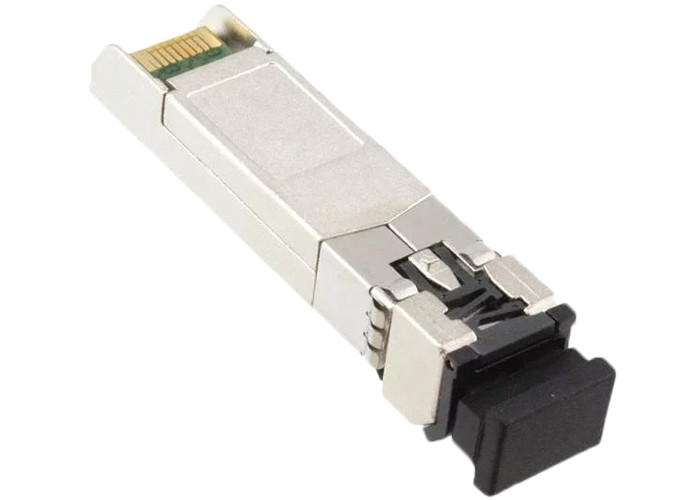

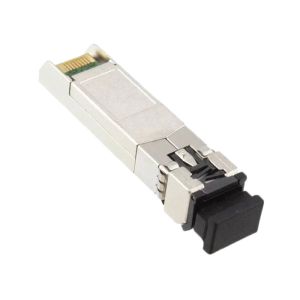

AFBR-57R6APZ Digital Diagnostic SFP Optical Transceiver with Rate Select

Ask Lasest Price
Brand Name :	LINK-PP
Model Number :	AFBR-57R6APZ
Certification :	ISO 9001,ISO 14001,UL,SGS,REACH168
Price :	$0.11-$35
Payment Terms :	TT,NET30/60/90 Days
Supply Ability :	350K/Month
Delivery Time :	Stock

Add to Cart

Product Details
Company Profile

AFBR-57R6APZ Digital Diagnostic SFP Optical Transceiver with Rate Select

Specifications:	AFBR-57R6AEZ
LINK-PP Part Number:	LPXXXXXX
Product Class:	Fiber Optics
Product Family:	Optical Transceivers
Product Series:	SFP
Product Name:	SFP Optical Transceivers
Status Available:	Active
RoHS:	RoHS-6 Compliance

Specifications:
Data Rate:	4.25 Gbps
Wavelength:	850nm
Maximun Distance:	550m
Fiber Type:	Multimode Glass
Emitter:	VCSEL
Voltage-Supply:	3.3V
Applications:	Ethernet
Connector Type:	LC Duplex
Mounting Type:	Pluggable,SFP
Lead Free Status / RoHS Status:	Lead Free / RoHS Compliant
Moisture Sensitivity Level(MSL):	1(Unlimited)

Feature Description:

● Fully RoHS compliant
● Diagnostic features per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers”
● Real time monitoring of:
● Transmitted optical power
● Received optical power
● Laser bias current
● Temperature
● Supply voltage
● Rate select functionality per SFF 8079 (revision 1.7)
● Wide temperature and supply voltage operation (-10°C to 85°C) (3.3 V ± 10%)
● Transceiver specifications per SFP (SFF-8074i) Multi-Source Agreement and SFF-8472 (revision 9.3)
● 4.25 GBd Fibre Channel operation for FC-PI 400-M5-SN-I and 400-M6-SN-I
● 2.125 GBd Fibre Channel operation for FC-PI 200-M5-SN-I and 200-M6-SN-I
● 1.0625 GBd Fibre Channel operation for FC-PI 100-M5-SN-I and 100-M6-SN-I
● 1.25 GBd operation for IEEE 802.3 Gigabit Ethernet 1000Base-SX
● Link lengths at 4.25 GBd:
● 150 m with 50 μm MMF, 70 m with 62.5 μm MMF
● Link lengths at 2.125 GBd:
● 300 m with 50 μm MMF, 150 m with 62.5 μm MMF
● Link lengths at 1.0625 GBd:
● 500 m with 50 μm MMF, 300 m with 62.5 μm MMF
● Link lengths at 1.25 GBd:
● 2 to 550 m with 50 μm MMF, 2 to 275 m with 62.5 μm MMF
● LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10A)
● 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) source technology
● IEC 60825-1 Class 1/CDRH Class 1 laser eye safe
● Compliant with Gigabit Ethernet

Installation:

● The AFBR-57R6APZ can be installed in any SFF-8074i compliant Small Form Pluggable (SFP) port regardless of host equipment operating status.

● The AFBR-57R6APZ is hot-pluggable, allowing the module to be installed while the host system is operating and on-line. Upon insertion, the transceiver housing makes initial contact with the host board SFP cage, mitigating potential damage due to Electro-Static Discharge (ESD).
