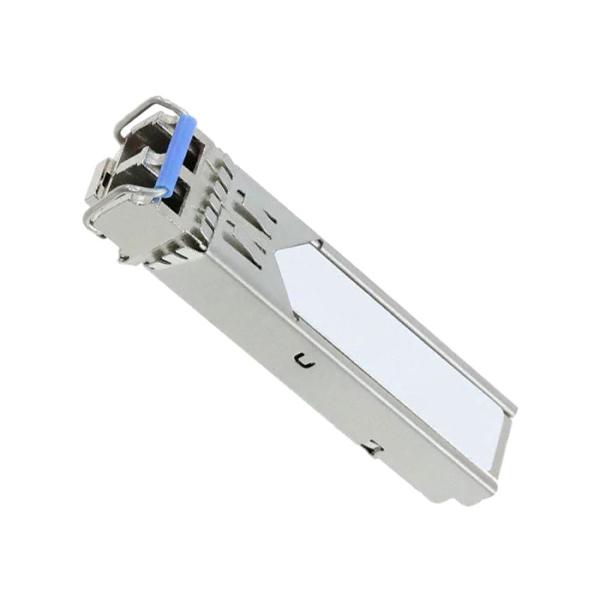

AFCT-57M5ATPZ SFP Fiber Optic Transceiver Module General Purpose

Ask Lasest Price
Brand Name :	LINK-PP
Model Number :	AFCT-57M5ATPZ
Certification :	ISO 9001,ISO 14001,UL,SGS,REACH168
Price :	$0.11-$35
Payment Terms :	TT,NET30/60/90 Days
Supply Ability :	350K/Month
Delivery Time :	Stock

Add to Cart

Product Details
Company Profile

AFCT-57M5ATPZ SFP Fiber Optic Transceiver Module General Purpose

Specifications:	AFCT-57M5ATPZ
Product Class:	Fiber Optics
Product Family:	Optical Transceivers
Product Series:	SFP
Product Name:	SFP Optical Transceivers
Status Available:	Active
RoHS:	RoHS-6 Compliance

Specifications:
Data Rate:	2.125 Gbps
Wavelength:	1310nm
Maximun Distance:	-
Fiber Type:	Singlemode Glass
Emitter:	DWDM EML
Voltage-Supply:	-
Applications:	Wireless
Connector Type:	LC Duplex
Mounting Type:	Pluggable,SFP
Lead Free Status / RoHS Status:	Lead Free / RoHS Compliant
Moisture Sensitivity Level(MSL):	3(168 Hours)

Feature Description:

● Diagnostic features per SFF-8472 “Diagnostic Monitoring Interface for Optical Transceivers”
● Compliant to Restriction on Hazardous Substances(RoHS) directive
● Real time monitors of:
– Transmitted average optical power
– Received average optical power
– Laser bias current
– Temperature
– Supply voltage
● High performance 1310 nm DFB laser
● Wide Temperature and Supply Voltage Operation(-40°C to 85°C) (3.3 V ± 10%)
● Transceiver specifi cations per SFP (SFF-8074i) MultiSource Agree ment and SFF-8472 (revision 9.3)
● Up to 20km with 9um fi ber for 3.072 Gb/s
● Up to 20km with 9um fi ber for 2.4576 Gb/s
● LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10)
● IEC 60825-1 Class 1/CDRH Class 1 laser eye safe
● Compatible with Fibre Channel and Gigabit Ethernet applications

Applications:

● Industrial / Factory Automation

● Motor Controls

● Fast Ethernet Networking

● FDDI Networking
