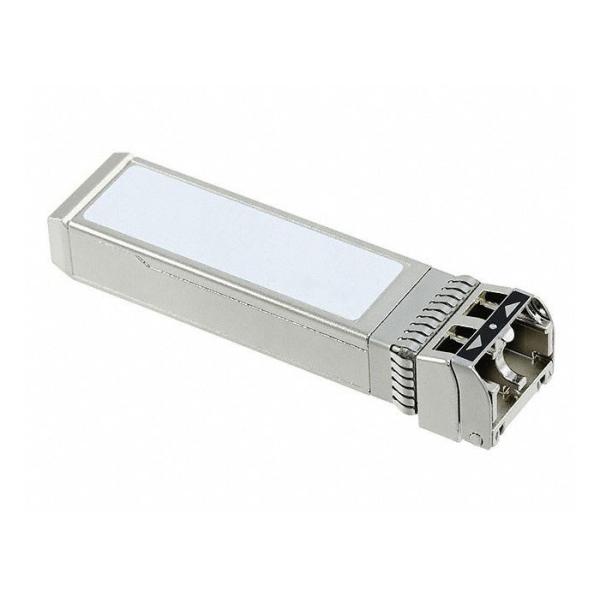

FTLX8573D3BTL SFP+ Optical Module Industrial Temperature 10Gb/s 850nm Multimode

Ask Lasest Price
Brand Name :	LINK-PP
Model Number :	FTLX8573D3BTL
Certification :	ISO 9001,ISO 14001,UL,SGS,REACH168
Price :	$0.11-$35
Payment Terms :	TT,NET30/60/90 Days
Supply Ability :	350K/Month
Delivery Time :	Stock

Add to Cart

Product Details
Company Profile

FTLX8573D3BTL SFP+ Optical Module Industrial Temperature 10Gb/s 850nm Multimode

Specifications:	FTLX8573D3BTL
Product Class:	Fiber Optics
Product Family:	Optical Transceivers
Product Series:	SFP+
Product Name:	SFP+ Optical Transceivers
Status Available:	Active
RoHS:	RoHS-6 Compliance

Specifications:
Data Rate:	10.5 Gbps
Wavelength:	850nm
Maximun Distance:	300m
Fiber Type:	Multimode Glass
Emitter:	DWDM EML
Voltage-Supply:	3.3V
Applications:	Ethernet
Connector Type:	LC Duplex
Mounting Type:	Pluggable,SFP+
Lead Free Status / RoHS Status:	Lead Free / RoHS Compliant
Moisture Sensitivity Level(MSL):	1 (Unlimited)

Feature Description:

• Hot-pluggable SFP+ footprint
• Supports 9.95 to 10.5 Gb/s bit rates
• Power dissipation < 1W
• RoHS-6 compliant (lead-free)
• Industrial temperature range -40°C to 85°C
• Single 3.3V power supply
• Maximum link length of 400m on 4700 MHZ-km OM4 MMF
• Heated 850nm VCSEL laser
• Receiver limiting electrical interface
• Duplex LC connector
• Built-in digital diagnostic functions
