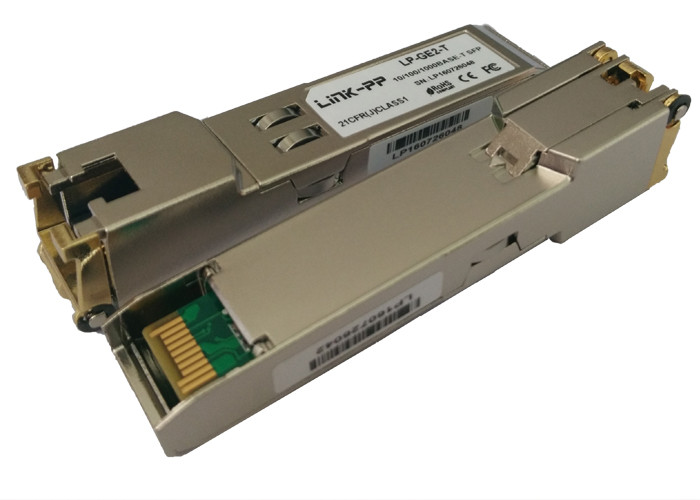

ABCU-5710RZ | 1.25 GBd Small Form Pluggable Electrical Transceiver

● RoHS-6 Compliant (see Table 1)
● Designed for Industry-Standard, MSA Compliant Small Form Factor Pluggable (SFP) Ports
● Compatible with IEEE 802.3:2000
● Custom RJ-45 connector with integrated magnetics
● Link lengths at 1.25 Gbd: up to 100 m per IEEE802.3
● Low power, high performance 1.25 Gbd SerDes integrated in module
● Single +3.3 V power supply operation
● Auto-negotiation per IEEE 802.3:2000 Clause 28 (Twisted Pair) and Clause 37 (1000BASE-X)
● Compatible to both shielded and unshielded twisted pair category 5 cable
● Two configurations:
ABCU-5700RZ: RX_LOS enabled
ABCU-5710RZ: RX_LOS disabled
● Rated for Commercial Temperature applications(0℃～70℃)

● The ABCU-5710RZ electrical transceivers from Technologies offer full-duplex throughput of 1000 Mbps by transporting data over shielded and unshielded twisted pair category 5 cable with 5-level PAM (Pulse Amplitude Modulation) signals.

● The ABCU-5710RZ and ABCU-5700RZ differ only in handling of RX_LOS signal functions, as explained further on the following pages.

● The Technologies 1000BASE-T module takes signals from both the twisted pair category 5 cable and the SerDes interface. Pin count overhead between the MAC and the PHY is minimized, and Gigabit Ethernet operation is achieved with maximum space savings.

● AFBR-5710Z: Family of 850nm +3.3V SFP optical transceivers for Gigabit Ethernet
● AFCT-5710Z: Family of 1310nm +3.3V SFP optical transceivers for Gigabit Ethernet
