LMJ1998824110DL1T39J RJ45 Jack LPJ0012GENL 10/100 BASE-T Ethernet

Product Categories

LINK-PP INT'L TECHNOLOGY CO., LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: LMJ1998824110DL1T39J RJ45 Jack LPJ0012GENL 10100 BASET Ethernet
Brand: LINK-PP
Price: 0.05 USD

Add to Cart

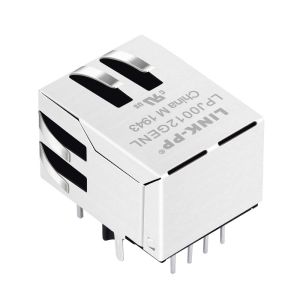

LMJ1998824110DL1T39J RJ45 Jack LPJ0012-8IENL 10/100 BASE-T Ethernet

Specification Cross	P.N	Manufacturer	Description
LMJ1998824110DL1T39J	LPJ0012-8IENL	LINK-PP	LMJ1998824110DL1T39J RJ45 Modular Jack LPJ0012IENL 10 / 100 BASE-T MAGANETIC
Series	Connector Type	Applications	Mounting Type
Connectors, Interconnects	LINK-PP Female Rj45	10/100Base-T	Thru-Hole
Orientation	Termination	LED Color	Shielding
90° Angle (Right) or 180°(Vertical)Optional	Solder	Optional	(Un)Shielded,EMI-Finger(With Or Wi)
10/100 Ethernet RJ45 Compatible Equivalent Alternate IEEE802.3u Compliant 6µ/30µ” Gold Plating (min) on Contacts 350uH min OCL at 8mA DC Bias Across the Full Temp Range 100% Electrical Testing 1500Vrms Hi-Pot Proprietary Robust Contact Design Designed to support applications, such as SOHO (ADSL modems), LAN-on-Mother- board (LOM), Hub and Switches
