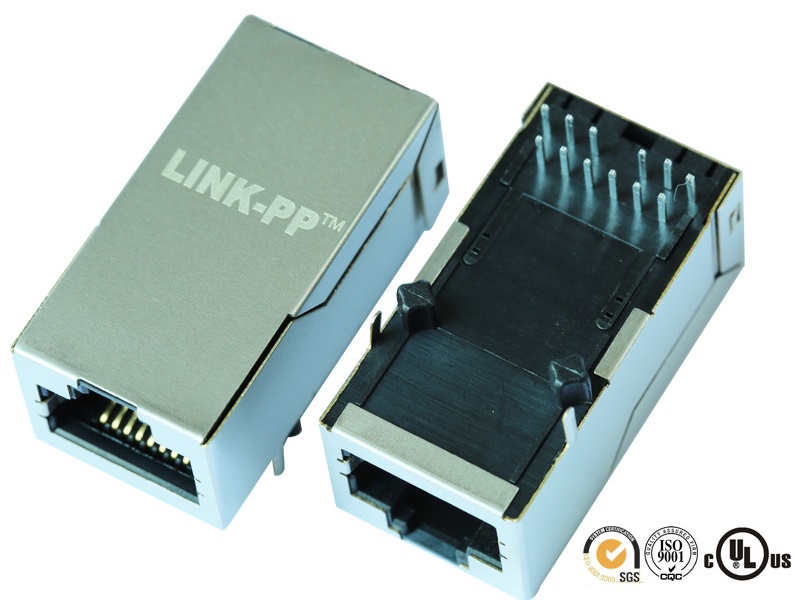

0813-1X1T-43 Gigabit Lan Magnetic RJ45 Jack 10/100/1000Base-T
Ethernet Magnetics
| 0813-1X1T-43 | gigabit lan Rj45 | Ethernet Magnetics | 10/100/1000 BaseTJack |
Designing Model: 【0813-1X1T-43】
♦ Magnetics Rj45 Modular jack
♦ gigabit lan Rj45
♦ Rj45 connector with magnetics
♦ Rj45 connector with integrated
♦ Designed for network interface card application.
♦ Designed to meet IEEE802.3u requirement.
♦ Available in all turn ratios used by LAN ICmanufactures.
♦ Primary center taps available for additional EMIreduction.
♦ Simplest magnetic component to place and route on PCB.
♦ Conserves minimizing PCB space.
♦ Mass Production Model:【LPJXXXXNL】
♦ Rj45 magnetics
♦ Rj45 with magnetics
♦ Magnetic Rj45
MAG.REVERSE LATCH ,
LED optional ; EMI-finger Optional.
Description
0813-1X1T-43 Gigabit Lan Magnetic RJ45 Jack 10/100/1000Base-T
Ethernet Magnetics
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top
Entry(Vertical)
2. Mechanical Attachment:
1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
11.Hipot:
1500Vrms MIN Or More
Ethernet Applications
Designed to support applications, such as ADSL modems,
LAN-on-Motherboard. Networking and communication equipments such as
HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone,
xDSL modem,Call Center solutions , Complex set top boxes , VOIP
gateways setup,Border Gateway Protocol,fast ethernet switch ...
Advantage
0813-1X1T-43 gigabit lan Rj45
18 years production experience,
2600 staff,
100% test
Flexible delivery time
Famous Customer
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics
,Cypress, Freescale,EKF.......
EMS Components Sourcing
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly;
Microelectronic, Flip Chip; Microelectronic, Chip On Board;
Optoelectronic Assembly; RF / Wireless Assembly; Through Hole
Assembly; Surface Mount Assembly; System Assembly; Printed Circuit
Board Assembly
