Name: 518404507 10 100 Ethernet Schematic embedded computer LPJ4011GFNL
Brand: LINK-PP
Price: 0.05 USD

Add to Cart

Quick Details

5-1840450-7
RJ45 Modular Jack
Shielded with Filter Magnetic RJ45 Jack to Wireless Sensor Network
High performance for maximum EMI suppression.
LAN interface suitable for 100Base-TX for Communication Controllers or Control Processors
Designed for network interface card application and Network Adapter
Original materials are RoHS and UL94-V0 compliant
ISO9001,SGS,UL,CE,REACH
Cross LPJ4011GFNL

Features

Point to Point Wireless Ethernet Bridge
Meet to IO-Link Masters and Net Analyzer
Single port, Multi-port and Stackable configurations (Thru-hole)
Reduces the number of components to be placed Development Board
Frees up board space and offers signal protection
Noise reduction in the system
Improved reliability and optimal system performance
Benefits of having shorter signal paths and the reliability gains from systems containing fewer components
Helps manufacturers reach their goals of cost reduction

Specifications

Characteristics	5-1840450-7 MAG45(TM) 10 / 100 Ethernet Schematic to embedded computer LPJ4011GFNL
	2)SMD,THT and THT with USB
	3)350μH min,OCL with 8mA bias
	4)Complies with IEEE 802.3
	5)Extended temperature range 0°c~70°c ( or -40°c~+85°c ) available
	6)PoE/PoE+ (350mA~720mA)
Operation/Application	×DSL Modems
	EMbedded PC
	LAN Applications
	Hub,Router,Switches
	AVR,DVR
Electrical Characteristics
Shielded	with/without
Termination Features
EMI Finger	with/without
Termination Method	Solder
Body Features
LED	with/without
EMI Fingers - Top and Sides	with/without
Latch Orientation	Tape UP/Down
PCB Tail Length	3.5±0.5mm
Height Above Board	Optional
Contact Features
Preloaded	YES
Contact Termination Type	Through Hole
Connector Style	Jack
Cores Number	8
Industry Standards
Lead Free Solder Process	Wave solder capable to 265°c
RoHS/elv Compliance History	Always was RoHS Compliant
Conditions for Usage
Applies To	Printed Circuit Board
Environmental Conditions	Office / Premises
Operating Temperature(°c)	0°c~70°c / -40°c~+85°c
Other Features
Magnetic Circuit	3D15
Status Indicator	LED
Left LED Color	Optional
Right LED Color	Optional
Decoupling capacitor	with/without
Rear PCB Ground Tab	with/without
Singal Lead Quantity	8
Datasheets	E-mail Inquiry to Summer@link-PP.com
Others Name	LPJ4011GFNL

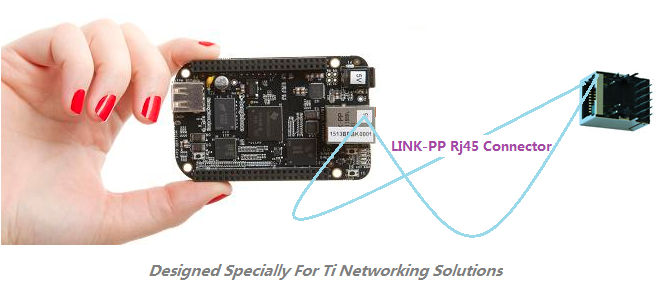

BeagleBone Black

LINK-PP RJ45 Designed for BeagleBone Black of Texas Instrument

http://www.ti.com/tool/beaglebk#0

a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists.

LINK-PP ------------ The Appointed Supplier And Supporter Of Embedded System for Ti

Order Selection

5-1840450-7 1x1 MAG45(TM) 10 / 100 Ethernet Schematic to embedded computer LPJ4011GFNL
Type PCB Mount	Thru-Hole (THT)
Number of Ports	1, 2, and 4 Ports and Stackable 2x1, 2x2, 2x4, 2x6 and 2x8
Shield and Unshield	Available in Shield and Unshield
Connector Type	RJ45
PoE	Power Over Ethernet Integrated Or Without
Magnetics	Magnetic Integrated
Magnetics Speed	Magnetics 10/100Mbps Or 1000Mbps
Packaging	Tray Options
Tab Location	Tab Up and Tab Down Options
LED Color	Optional
Number of Positions	8 and 10 Positions or Others
Number of Contacts	8 and 10 Contacts or Others
RoHS Compliant	Yes
Solder Temperature	230 TO 240 degr.C 5-10 SECONDS
Solder High-Temp Option	260 degr.C 5-10 SECONDS
High Temperature Option	-40 to +85 Degrees F
Operating Temperature	-0 to 70 Degrees C

5-1840450-7 1x1 MAG45(TM) 10 / 100 Ethernet Schematic to embedded computer LPJ4011GFNL
