Specification	Part No	Manufacturer	Description
LPJ4514GENL	LPJ4514GENL	LINK-PP	1x 10/100,Rj-45 R/A POE,W/LED
Series	Connector Type	Applications	Mounting Type
Connectors, Interconnects	LINK-PP Rj45	10/100 Power	Thru-Hole
Orientation	Termination	LED Color	Shielding
90° Angle (Right)	Solder	Green/Yellow	Shielded ,EMI-Finger
1 x 10/100 Mbit Ethernet 1:1 Turn Ratio Power Over Ethernet Rj45 Magnetics Module RJ45 Shielded Socket Right Angle Shield Jack Thru-hole IEEE 802.3af LED Indicator Flexible Designed LPJ4514GENL.pdf

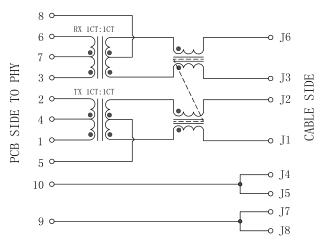

1.TURNS RATIO(±5%): TX=1CT:1CT RX=1CT:1CT 2.HI-POT: 1500Vrms 3.INSERTION LOSS: -1.2dB MAX @ 1-100MHz 4.RETURN LOSS: -16dB MIN @ 1-30MHz -14dB MIN @ 40MHz -13dB MIN @ 50MHz -12dB MIN @ 60-80MHz 5.CROSS TALK: -43dB MIN @ 30MHz -37dB MIN @ 60MHz -33dB MIN @ 100MHz 6.DCMR: -50dB MIN @ 30MHz -43dB MIN @ 60MHz -35dB MIN @ 100MHz 7.OCL: 350uH Min @0.1MHz 0.1Vrms With 8mA DC Bias 8.Operating temperature range: 0℃ to +70℃ 9.Design to handle 600mA DC For POE 802.3af.
