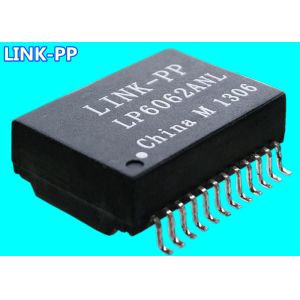

10/100/1000BASE-T PoE+ LAN Transformer Overview:

The LINK-PP LP6062ANL is a high-performance Gigabit Ethernet LAN transformer module designed for 10/100/1000BASE-T applications with PoE+ (IEEE 802.3at) support. Engineered for reliability, signal integrity, and EMI performance, this 24-pin magnetic module is ideal for networking equipment, SOHO devices, LOM designs, industrial systems, and telecom applications.

LP6062ANL PoE+ LAN Magnetic Key Features

• Supports 10/100/1000BASE-T Gigabit Ethernet
• PoE+ (IEEE 802.3at) compliant
• High isolation: 1500 Vrms, 1mA, 1s
• Operating temperature: −40°C to +85°C
• UL Certified: File No. E484653
• RoHS 2011/65/EU compliant
• Optimized for EMI performance, low insertion loss, and high common-mode noise rejection
• Suitable for ADSL modems, SOHO routers, LOM, hubs, and switches

Electrical Specifications @ 25°C

Mechanical Information

1. Standard 24-pin transformer package
2. Designed for automated SMT reflow
3. Max reflow temperature: 250°C for 5 seconds
4. Recommended PCB layout provided in the drawing
5. Marking: LP6062ANL / LINK-PP / China

Why Choose LINK-PP LAN Transformer?

1. Professional Certificate

LINK-PP products comply with major global standards, ensuring safety, reliability, and environmental responsibility:

• ISO 9001 Quality Management
• ISO 14001 Environmental Management
• UL Safety Certification
• REACH 168 Compliance
• SGS Verified Testing

2. LINK-PP Company, Production Process, and Test Equipment

Our high-precision production flow ensures stable electrical performance and consistent quality across all LAN Magnetics & RJ45 solutions.

• Twisting
• Soldering
• Plastic Case Assembly
• LED Assembly
• Shearing LED Pin
• Unwrought Testing
• Hipot Testing
• Laser Printing
• Metal Shell Assembly
• Final Inspection
• PIN Trimming
• Integrated Testing

State-of-the-art test systems guarantee every LAN transformer meets industry-level EMI, signal integrity, and reliability standards.

1. ROHS Analyzer
2. LED Testing
3. Hipot Test
4. Network Analyzer
5. Reflow Soldering Testing
6. Reliability Test Reporting
7. EMI Test
8. Automation Integrated Testing

LINK-PP is a professional designer and Manufacturer of magnetic telecom and networking components. Founded in Shenzhen in 1997 and began to develop Discrete Transformer. With over 26 years of experience in innovation and technology leadership. Our main products include RJ45 Connectors, LAN Transformers, and SFP Modules. We focus on improving product reliability and durability.

Main Production Lines

◆ 10/100/1000/10GBase-T LAN Isolation Transformer and Filter

◆ Rj45 Modular Jack With Integrated 10/100/1000/10G Magnetics
◆ Magnetic Rj45 Jack with POE/ POE+; IEEE823.3af/ IEEE802.3at
◆ LAN Transformer With POE/ POE+; IEEE823.3af/ IEEE802.3at
◆ T1/E1,T3/DS3/E3/STS-1 Interface LAN transformer
◆ ISDN,HDSL,ADSL and VDSL Transformer and splitter

◆ Optical Transceivers
