LPJE101AWNL Tab Up Green/Green LED 1X1 Port RJ45 Modular Jack
Without Magnetics
LINK-PP LPJE101AWNL RJ45 Jack without Integrated Magnetics for
router and Switch(1X1 Port,Tab Up ,Green/Green LED)
The LPJE101AWNL supports speed 10/100 Base-T, it is compliant to
IEEE 802.3, UL, Reach, RoHs, ISO19001, ISO14001 standards. It can
be used to support application, such as Intercom,Industrial PC,
router and Switch.
| LINK-PP Part Number | LPJE101AWNL |  |
| Application-Lan | ETHERNET(NoN PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Temperature | -40 TO + 85℃ |
| Diodes | NO DIODES |
| LED Option | GREEN/GREEN |
| Shielding | Shielded, EMI Finger |
| Mounting Type | Through Hole |  |
| Orientation | 90° Angle (Right) |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.516 |
| Package Height (mm) | 13.10 |
| Package Length (Inches) | 0.640 |
| Package Length (mm) | 16.26 |
| Package Width (Inches) | 0.620 |
| Package Width (mm) | 15.75 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT
|
LPJE101AWNL Tab Up Green/Green LED 1X1 Port RJ45 Modular Jack
Without Magnetics:
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete
Magnetic Transformers
Cooperative Partner:
• Intel
LINK-PP Is the preferred supplier of Intel.
LINK-PP LPJG16314A4NL is used in MinnowBoard max of Intel.
• Texas Instruments

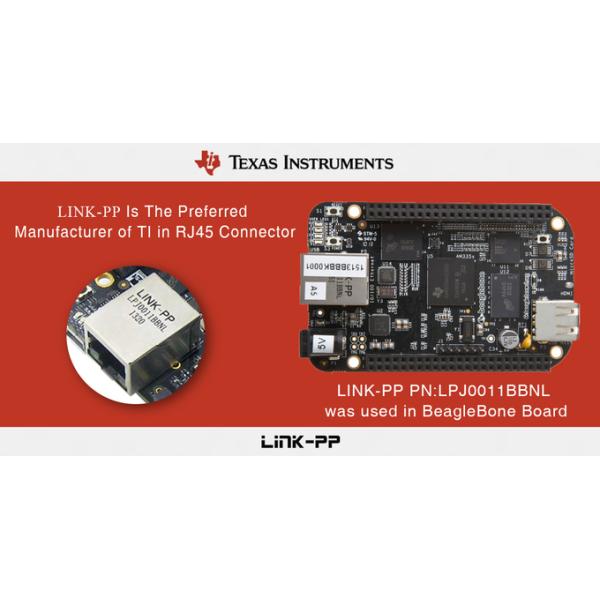

LINK-PP is the preferred supplier of TI.
