    LPJE104ADNL 1X4 Port FR4 PCB RJ45 Modular Jack Side Entry Tab Down Yellow/Green Led

    Ask Lasest Price
    Brand Name : LINK-PP
    Model Number : LPJE104ADNL
    Certification : UL,ROHS,Reach,ISO
    Price : $0.05-$1.28
    Payment Terms : TT,NET30/60/90 Days
    Supply Ability : 6000K/month
    Delivery Time : Stock
    • Product Details
    • Company Profile

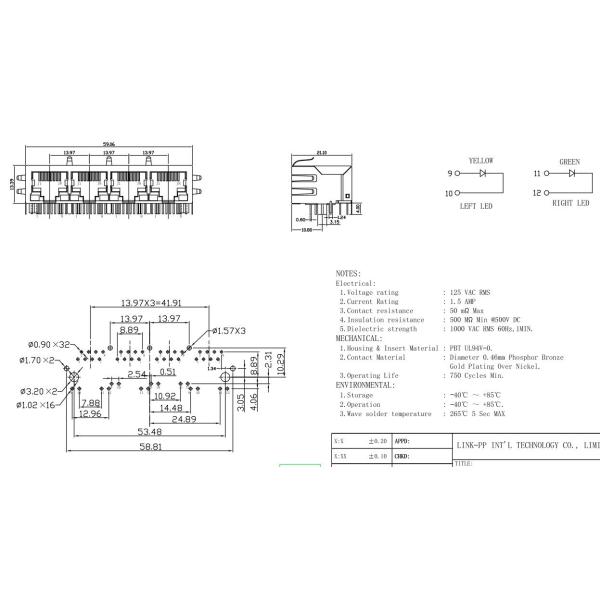

    LPJE104ADNL 1X4 Port FR4 PCB RJ45 Modular Jack Side Entry Tab Down Yellow/Green Led

    LPJE104ADNL Yellow/Green LED 1X4 Port RJ45 Jacks Tab Down without Integrated Magnetics

    LINK-PP LPJE104ADNL Ethernet RJ45 without Integrated Magnetics for Intercom and Industrial PC(1X4 Port,Tab Up,Yellow/Green LED )


    The LPJE104ADNL supports speed 10/100 Base-T, it is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001, ISO14001 standards. It can be used to support application, such as Intercom,Industrial PC, switch and router.
    LINK-PP Part Number:LPJE104ADNLConnector TypeJack
    Part StatusActiveMounting TypeThrough Hole
    Number of Positions/Contacts8p8c (RJ45, Ethernet)Application-Lan-
    Number of Ports1x4 PortSpeed-
    LatchDownCores per Port-
    Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
    Shield EMI TabsWithLED OptionYellow/Green
    PCBFR4PCB Retaining PostT POST
    Package Height (Inches/mm)0.527/13.39Package Length (Inches/mm)0.831/21.10
    Package Width (Inches/mm)2.325/59.06Temperature-40℃ TO 85℃
    Bst CircuitYesAutomDXYES
    DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
    Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT,C


    LINK-PP

    is a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000 ,ROSH,REACH, CEand UL, owns advanced manufacturing facilities and test equipments imported from abroad.


    Established in 1997, we have around 2600 staff at present. With the abundant productive capacity of 6000K per month, we are able to delivery the goods within the short time.Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipments such as HUB,PC card,Switch,Router,PC Mainboard,SDH,PDH,IP Phone,xDSL modem.


    1000 Base-T 1X1 Port Vertical Magnetic RJ45 Jack Connctor V8BR-1AX1-GH 4


    Main Products
    10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
    RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
    T1/E1,T3/DS3/E3/STS-1 interface line transformer
    ISDN,HDSL,ADSL and VDSL interface line transformer and splitter

    SS-6488-NF-A431 Tab Down 1x1 Port 1000 Base-T Industrial RJ45 Ethernet Cable Connector 2
