SM42P01EL 5G Chip LAN Transformer Module 600mA PoE+ Current

Ask Lasest Price
Brand Name :	LINK-PP
Model Number :	SM42P01EL
Certification :	RoHS Compliant
Price :	$0.06-$3.2
Payment Terms :	TT,NET30/60/90 Days
Supply Ability :	3KK/Month
Delivery Time :	in Stock Ship Today

Add to Cart

Product Details
Company Profile

SM42P01EL 5G Chip LAN Transformer Module 600mA PoE+ Current

Product Description:

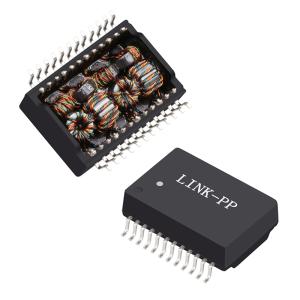

SM42P01EL Chip LAN Transformer Module designed for 5 Gigabit Ethernet (5GbE) applications, supporting PoE+ (Power over Ethernet Plus). This surface-mount (SMT) transformer integrates common-mode chokes to ensure superior EMI suppression, signal integrity, and isolation performance. Engineered for high-speed networking, it provides reliable connectivity for next-generation Ethernet devices requiring efficiency, compact size, and robust power delivery.

Key Features of SM42P01EL 5G LAN Transformers:

IEEE 802.3 Ethernet compatible
Supports 1G / 2.5G / 5G BASE-T high-speed Ethernet applications
PoE+ compliant, delivering up to 600 mA per port
Integrated common mode chokes for excellent EMI/RFI noise reduction
Low insertion loss and high return loss for optimized signal quality
Hi-Pot isolation up to 1500 Vac, 60 s for enhanced safety
Surface-mount assembly (SMT) design for automated production
Wide operating temperature range: −40 °C to +85 °C
RoHS-compliant and halogen-free

Electrical Specifications @ 25℃:

Parameter	Specification
Inductance	230 µH min. @ 100 kHz, 0.1 V
Insertion Loss (TD-MX)	1–100 MHz: −1.0 dB max. 100–250 MHz: −2.0 dB max.
Return Loss (TD-MX)	1–40 MHz: −16 dB min. 40–250 MHz: −(16 − 10 log(f/40)) dB min.
Crosstalk	1–250 MHz: −35 dB min.
DCMR (TD-MX)	1–50 MHz: −30 dB min. 50–150 MHz: −20 dB min. 150–250 MHz: −15 dB min.
Hi-Pot	1500 Vac, 60 s
PoE+ Current	600 mA
Operating Temperature	−40 °C to +85 °C
Storage Temperature	−40 °C to +85 °C

SM42P01EL PoE+ Transformers Datasheet:

SM42P01EL PoE+ Transformers Datasheet

SM42P01EL PoE+ LAN Magnetics Datasheet

SM42P01EL 5G LAN Transformers Datasheet
