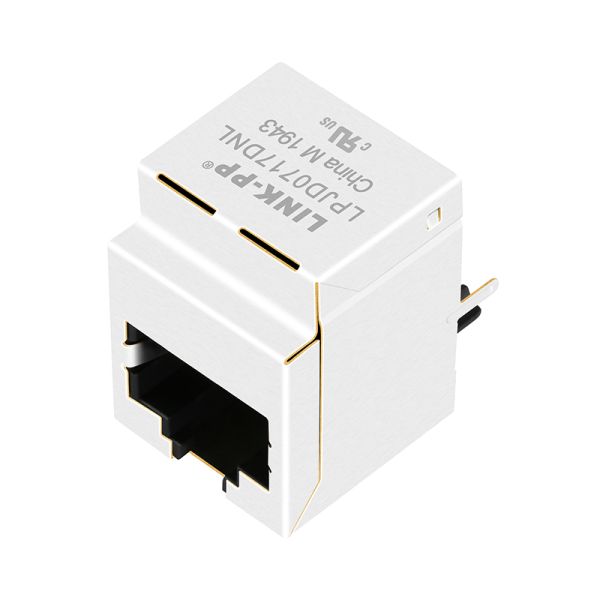

LPJD0717DNL 1000Base-T Vertical RJ45 Magjacks Without LED

Ask Lasest Price
Brand Name :	LINK-PP
Model Number :	LPJD0717DNL
Certification :	UL,ROHS,Reach,ISO
Price :	$0.09-$1.85
Payment Terms :	TT,NET30/60/90 Days
Supply Ability :	6000K-PCS/Month
Delivery Time :	in Stock Ship Today

Add to Cart

Product Details
Company Profile

LPJD0717DNL 1000Base-T Vertical RJ45 Magjacks Without LED

The LPJD0717DNL is a single-port, 1000 Base-T (Gigabit Ethernet) RJ45 magnetic connector designed for vertical, through-hole mounting (THT). It is manufactured by LINK-PP and is a non-PoE (Power over Ethernet) component, featuring an integrated magnetics module but no LED indicators.

Mechanical and Material Specifications

Parameter	Specification
Part Number	LPJD0717DNL
Connector Type	Vertical Jack (RJ45, Ethernet)
Number of Positions/Contacts	10P8C
Latch Orientation	Up
PCB Mount Angle	THT Solder
Shield EMI Tabs	Without
Package Height	16.60mm / 0.654Inches
Package Length	21.59mm / 0.850Inches
Package Width	16.00mm / 0.630Inches
Housing Material	Thermoplastic PBT+30%G.F UL94V-0
Contact Material	Phosphor Bronze C5210R-EH, Thickness=0.35mm
Pins Material	Brass C2680R-H, Thickness=0.35mm
Shield Material	Copper alloy Brass H65Y, Thickness=0.2mm
Contact Plating	Gold 6 micro-inches Min. in contact area.
Wave Solder Tip Temperature	250°C, 5 Sec.
UL Certification	File Number E484635

Electrical Specifications

The electrical specifications for the LPJD0717DNL are measured at 25°C.

Specification	Value	Condition
Turn Ratio (±2%)	1CT:1CT	Primary: Secondary (Pri : Sec)
Inductance OCL (Min)	350µH	@100kHz, 0.1V, 8mA DC Bias
Insertion Loss (Max)	-1.0dB	0.5 ~ 100MHz
Return Loss (Min)	-18dB	0.5 ~ 40MHz
Return Loss (Min)	-14dB	60MHz
Return Loss (Min)	-12dB	80MHz
Return Loss (Min)	-10dB	100MHz
Crosstalk (Min)	-35dB	0.5 ~ 40MHz
Crosstalk (Min)	-30dB	40.1 ~ 100MHz
Common Mode Rejection Ratio (CMRR) (Min)	-30dB	0.5 ~ 100MHz
Hipot Test (Min)	1500Vrms
Operating Temperature Range	0℃ to 70℃

Compliance & Certifications

Parameter	HFJV1-1G46RL / HFJV1-E1G46RL
Connector Type	RJ45 Magnetic Jack
Port Count	1 port
LED	No LEDs
Orientation	Top-Entry
Shield	Yes
Operating Temperature	0°C to +70°C / -40°C to +85°C
Storage Temperature	-40°C to +85°C
Humidity	0–95% RH

LPJD0717DNL Vertical RJ45 Jack Datasheet - Schematic

Compliance & Certifications

IEEE 802.3 Ethernet standard
RoHS / REACH compliance
UL-recognized components
ISO19001 and ISO14001 standards
