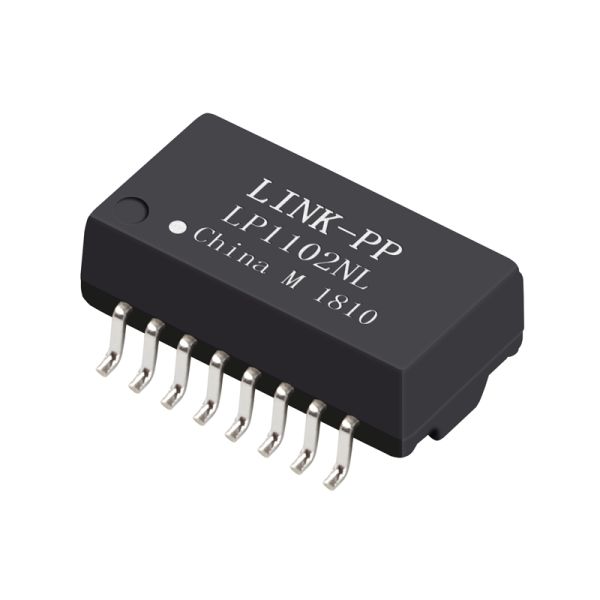

Equivalent to HR601680 10/100 Transformer Ethernet Magnetic Transformer , LP1102NL

Ask Lasest Price
Brand Name :	LINK-PP
Model Number :	LP1102NL
Certification :	UL,RoHS,Reach,ISO
Price :	$0.06-$3.2
Payment Terms :	TT,NET30/60/90 Days
Supply Ability :	3KK/Month
Delivery Time :	Stock

Add to Cart

Product Details
Company Profile

Equivalent to HR601680 10/100 Transformer Ethernet Magnetic Transformer , LP1102NL

Equivalent to HR601680 10/100 Ethernet Magnetic Transformer , LP1102NL

Pin to pin HR601680

Factory PN

LP1102NL

Price Break	Unit Price	Extended Price
1-5	A-F	-
10-50	B	-
100-500	C-1	-
1,000-2,500	Supportive	-
5,000	Dynamic	Dynamic
10,000	Dynamic	Dynamic
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Cross References

Alternative to HR601680

L/T

Stock

Description

SIN Magnetics 10/100 SMT

Documents Available

PDF/3D/Step/IGS/Price/Cross

Quantity Available

500000 pcs

Compatible HR601680 Electrical Specifications @25℃

1.OCL: 350uH MIN
@100KHz,0.1Vrms,8mADC Bias
2.Turns Ratio:
TX=1CT∶1CT RX=1CT∶1CT
3.Insertion Loss:
0.1-100MHz:-1.1dB MAX
4.Return Loss(dB TYP):
30MHz:-20 60MHz:-14
80MHz:-11.5
5.Crosstalk(dB TYP):
30MHz:-45 60MHz:-40
100MHz:-35
6.DCMR(dB TYP):
30MHz:-42 50MHz:-37
100MHz:-33
7.Hipot: 1500Vrms MIN
8.Operating Temperature: 0℃～70℃./-40℃～85℃
