Key Features of 85732-1008 Multiport RJ45:

★ Fully shielded RJ-45 connector with 2x6 multiple ports.
★ Integrated Ethernet magnetics with Bob Smith termination with isolation capacitor.
★ Compatible with various Gigabit Ethernet transceiver ICs (PHY’s).
★ Compliant with IEEE 802.3ab standard.(1000 Base-T).
★ Ethernet Transformers according to IEEE802.3 (PoEplus) for PSE applications.
★ Connector intended to be mated with plugs according to IEC 60603-7.
★ Dielectric isolation of 2250VDC
★ Two or four LEDs per port where applicable, (two single-color or bi-color per position).
★ Operating temperature: 0°C to 70°C, external ambient temperature.

Physical Specifications of 2x6 RJ45 Connector:

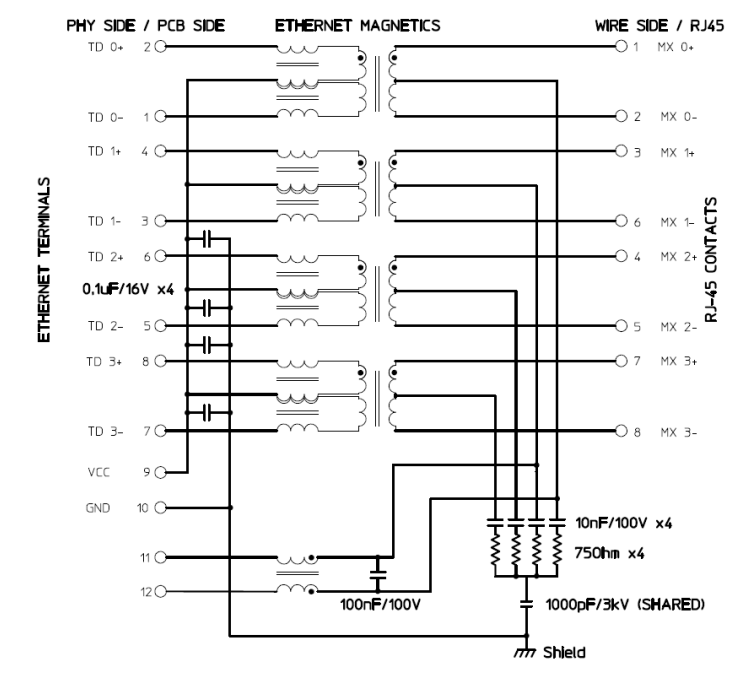

85732-1008 Datasheet--Magnetic Wiring Schematic Diagram:
