Pulse JV011I21NL Surface Mount RJ45 Single Port 100 Base-TX Fast Ethernet

Ask Lasest Price
Brand Name :	LINK-PP
Model Number :	JV011I21NL
Certification :	ISO9001,SGS,UL,CE,REACH163
Price :	Supportive & Competitive
Payment Terms :	TT,NET30/60/90 Days
Supply Ability :	3200000/Month
Delivery Time :	Stock

Add to Cart

Product Details
Company Profile

Pulse JV011I21NL Surface Mount RJ45 Single Port 100 Base-TX Fast Ethernet

JV011I21NL Updated Version

Trader Part Number

JV011I21NL Obsoleted in our Mould

Price Break	Unit Price	Extended Price
1-5	Free	-
10-50	2.5	-
100-500	2.0	-
1,000-2,500	dynamic	dynamic
5,000	dynamic	dynamic
10,000	Negotiable	Negotiable
50,000	Negotiable	Negotiable
100,000	Negotiable	Negotiable
500,000	Negotiable	Negotiable

Made In China

SM-LPJ19111CNL Competive

Manufacturer

LINK-PP

Documents

PDF/IGS/STEP/Cross/Price/Compatible

Lead Free Status / RoHS Status

Lead free / RoHS Compliant

Quantity Available

2,000 PCS / Or 5 weeks

100 Base-TX (Fast Ethernet) surface mount RJ45 single port (1x1) Tab-UP/DOWN with or without
LEDS Integrated Magnetics Connector, designed to support applications such as: Set Top Box and
Network Interface Cars (NIC) JV011I21NL

1.RoHS peak wave reflow temperature rating 245°C
2.SMT product, reduced size and low cost
3.Meets IEEE 802.3 specification
4.High performance for maximum EMI suppression
5.Minimum 1500Vrms isolation per IEEE 802.3 requirement

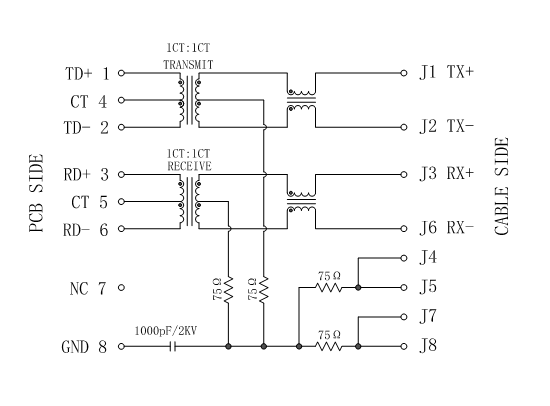

7.Partial Specifications :
